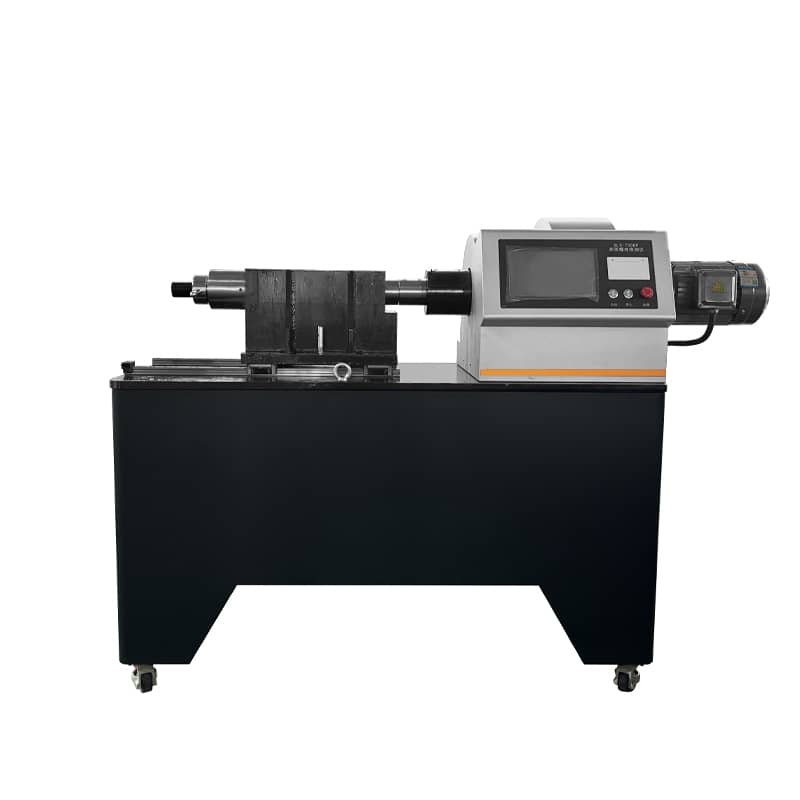

HYGDS-24- High strength bolt anti slip coefficient tester

1、 Product Overview

This detector is designed and manufactured according to the relevant requirements of GB50205-2020 "Construction Quality Acceptance Standards for Steel Structures". It is mainly suitable for testing the anti slip coefficient of the friction surface of high-strength large hexagon head bolt connection pairs at grade 10.9 and grade 8.8, and for testing the anti slip coefficient of the friction surface of high-strength torsion shear bolt connection pairs at grade 10.9. There are four physical channels and a total of 24 logical channels in six groups. The product is easy to operate, with rich data display colors, capable of storing multiple test data, and can print test data at any time.

2、 Technical parameters and characteristics

2.1 Main Technical Parameters

1. Measurement range: 10kN~400kN

2. Resolution: ± 0.05kN

3. Error: 1%

4. Bolt types: large hexagonal type, torsion shear type

5. Bolt diameters: M 16, M20, M22, M24, M27, M30

6. Bolt grade: 10.9s, 8.8s

7. Display mode: Color touch screen

8. Power supply: 220V ± 10%, 50Hz

9. Dimensions: 480 * 330 * 970mm

10. Packaging size: 530 * 380 * 1000mm (main unit) 650 * 410 * 370mm (accessory box)

11. Net weight: 30kg

12. Gross weight: 40.2kg

2.2 Product Features

1. A seven inch color touch screen with rich interface colors and friendly human-computer interaction.

2. There are four physical channels, with a total of 24 logical channels in six groups.

3. During the experiment, the tension has a peak holding function, and there are prompts at each stage of tightening the bolt. The sensor exceeds the limit

There is an alarm prompt when the maximum range is 15%.

4. The whole machine is equipped with pulleys, making it easy to move. It is equipped with two storage compartments, which can store sensor power cords and other related items.

5. It can store 200 detailed test data and is equipped with a panel printer that can print test data or historical data at any time.
