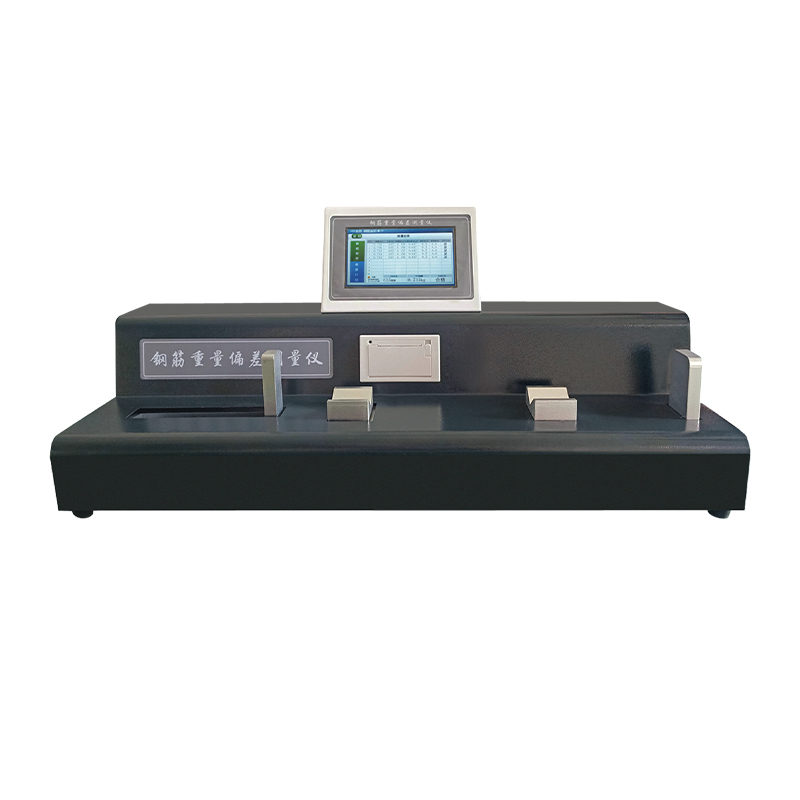

HTPC-201 Rebar Weight Deviation Measuring Instrument 1

1.2 Technical Parameters

Quantity of steel bars: 5-10 pieces

Weighing range: 15Kg, accuracy: 0.5%

Diameter range: φ 6- φ 50mm

Length range: 500-650mm, accuracy: 1mm

Weight deviation rate accuracy: ± 0.5%

Power supply: AC220V ± 10%/50Hz

Dimensions: 785 * 290 * 350 mm

Packaging size: 835 * 375 * 470 mm

Weight: 25Kg

Gross weight: 33Kg

1.3 Functional Features

Adopting high-precision encoder.

The high-precision guide rail is used to connect the sliding baffle and guide rail, greatly eliminating the gap and improving the overall accuracy.

Adopting a V-shaped bracket design to improve the stability and efficiency of the equipment.

Adopting a 7-inch high-resolution touch screen, the operation is simple and easy to use.

One click operation of the experiment, after starting the experiment, automatically calculates the weight deviation of the steel bars and determines whether the steel bars are qualified.

Up to 50 sets of historical data storage function. After the experiment is completed, the test report data can be stored on the device.

Equipped with a standard micro printer, it outputs measurement results and deviation rates.
