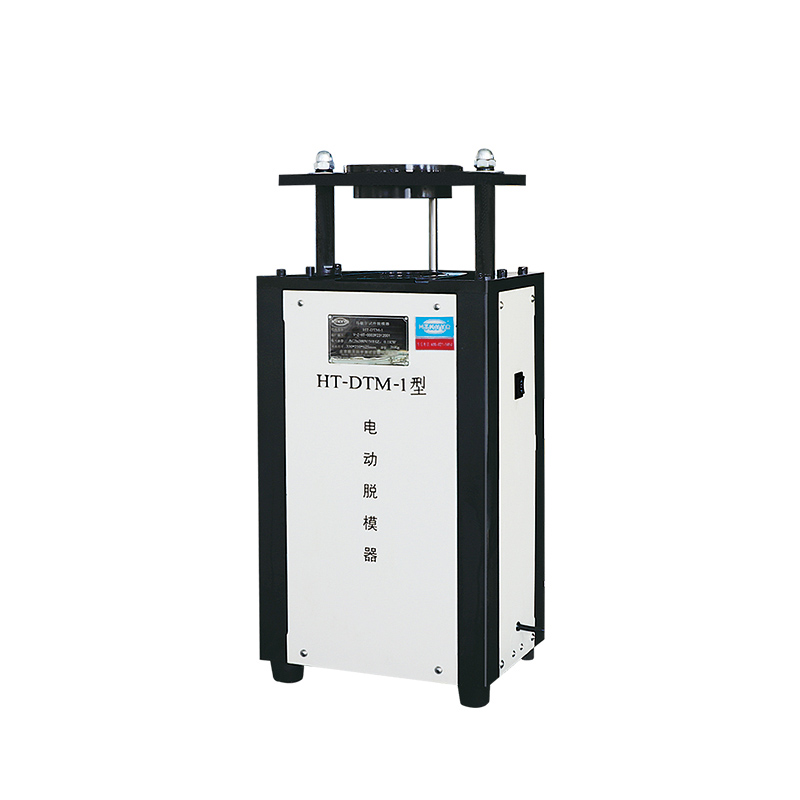

HT-DTM-1 Marshall specimen demoulder

1. Scope of application of this product:

Welcome to use this product. It is suitable for making test molds of asphalt mixtures using standard compaction method. The demolding of cylindrical specimens with a diameter of 152.4mm × 115mm/101.6mm × 63.5mm is required. (Suitable for all models of compaction equipment in our factory).

2. Main features and technical indicators:

1) Simple structure, lightweight and portable, low failure rate.

2) 101.6mm and 152.4mm trial molds are compatible simultaneously.

3) Maximum thrust: 6KN

4) Demoulding stroke:>100mm

5) Power supply: AC220V

6) Power: 100W

7) Dimensions: 330 * 210 * 670mm

8) Weight: 26Kg

9) Packaging size: 420 * 290 * 800mm

10) Net weight: 33Kg
